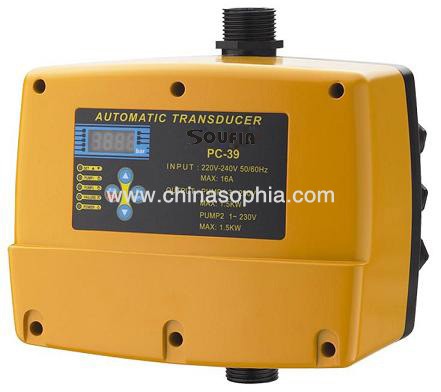

| Model:PC-39 |
|
 Parameters |
THIS MODEL CONTROL TWO PUMPS TO WORK
1.CONNECTION THREAD:R1''
2.PROTECTION RATING:IP65
3.MAX WORKING PRESSURE:8 BAR
4.STARTING PRESSURE SETTING:1--6BAR
5.MAX WORKING TEMPERATURE:60oC
MAIN FUNCTION:
PC-39 SERIES CONTROLLER IS A PUMPING SET CONTROLLER WHICH IS CONTROLLED
BY MICROCOMPUTERWITH AUTOMATIC PRESSURE TRACKING AND REGULATING FUNCTIONS.
THE SINGLEPHASE POWER GIVES IT A WIDE RANGE OF VERSATILITY IN ITS APPLICATION;
THE NEWLY ADVANCED CONTROLMETHOD OF ADJUSTING POWER ACCORDING WATER
CONSUMPTION CAN SAVE A LOT OF ELECTRICITY;WITHOUT ANY OTHER ELECTRICAL
PARTS, THE INTEGRATED DESIGN MAKES IT EASY AND TECHNICAL SKILLS IS NOT
NEEDED TO INSTALL AND OPERATE,THUS MAINTENANCE IS NOT REUIRED. IT CAN
ENTIRELY REPLACED THE TRADITIONAL CONSTANT PRESSURE WATER SUPPLY EQUIPMENT
COMPOSED BY PLC, INVERTER,CONTROL CABINET AND PRESSURE SENSORS.
THE CONTROLLER INSTALLED WITH TWO PUMPS WILL BE THE MOST ECONOMICAL
WATER SUPPLY SYSTEM NOWADAYS. AS A RESULT, THIS DEVICE CAN SIGNIFICANTLY
REDUCE YOUR INITIAL EQUIPMENT INVESTMENT AND LONG-TIME USE-COST. ELECTRICAL PERFORMANCE PARAMETERS. |
