| Model:ZX6-315 |
|
 Parameters |

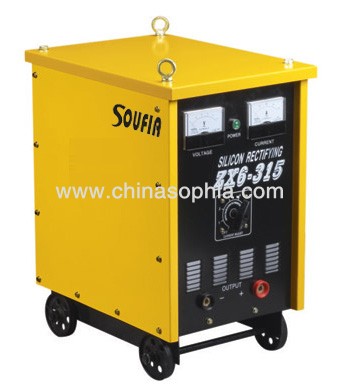

| Rectify DC arc welding machine: ZX6-315 |
| Features: |
| 1. New style energy saving 3 phase welding power source, adopts 3 phase connection rectify mode. |
| 2. Change the primary coil to adjust the welding current, high efficiency and low no-load loss. |
| 3. The structure is simple and reasonable, easy to operate, convenient to maintain, low noise. |
| 4. Suitable for welding of low alloy steel, stainless steel, steel and cast iron. |
|
Item |
ZX6-250 |
ZX6-315 |
ZX6-400 |
ZX6-500 |
|
Power voltage(V) |
380 |
380 |
380 |
380 |
|
Rated input capacity(KVA) |
18 |
20.5 |
28 |
40 |
|
No-load voltage(V) |
55~68 |
55~68 |
60~80 |
60~80 |
|
Rated operating current(A) |
250 |
315 |
400 |
500 |
|
Current range(A) |
80~250 |
120~315 |
140~400 |
140~500 |
|
Adjusting stages |
7 |
7 |
7 |
7 |
|
Rated duty cycle(%) |
35 |
35 |
35 |
35 |
|
Insulation grade |
F |
F |
F |
F |
|
Protective grade of housing |
IP21S |
IP21S |
IP21S |
IP21S |
|
Weight(KG) |
94 |
110 |
116 |
116 |
|
Measurement(MM) |
640x440x750 |
640x440x750 |
680x580x920 |
680x580x920 |
|
Usable electrode(MM) |
2.5-4 |
3.2-5 |
3.2-6 |
3.2-8 | |
