| Model:WSME-315 |
|
 Parameters |

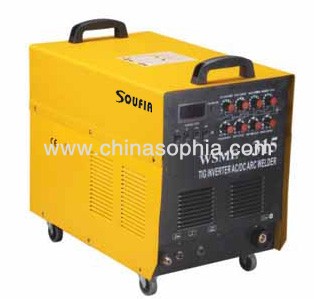

| AC/DC inverter TIG/MMA PULSE inverter welding machine TIG series: WSME-315 |
| Features: |
| 1. Quality square wave power supply, stable arc, HF arc stabilization not necessary; |
| 2. Concentrated heat, easy to fill in the wire, especially suitable for wire welding in bicycle industry, etc; |
| 3. Foot pedal controller connection facilitates welder's operation; |
| 4.Built-in alarming and protective circuits are provided to prevent over current, over heat, over voltage, low voltage, etc and ensure safe operation; |
| 5. High duty cycle, continuous operation without interruption at large current is available;. |
| 6. Suitable for welding of various metallic materials such as aluminum, aluminum alloy, carbon steel, stainless steel, copper, titanium, etc. |
|
Item |
WSME250 |
WSME315 |
|
Power voltage(3PH) |
380 |
380 |
|
Rated input current(A) |
15 |
20 |
|
Output current range(A) |
10~250 |
10~315 |
|
Preheat time(S) |
0~2 |
0~2 |
|
Delay time(S) |
2~10 |
2~10 |
|
Attenuated time(S) |
0~5 |
0~5 |
|
Arc strike time |
HF |
HF |
|
No-load voltage(V): |
60 |
60 |
|
Rated output voltage.(V): |
18 |
22.6 |
|
Insulation class: |
F |
F |
|
Efficiency(%) |
80 |
85 |
|
Duty cycle(%) |
60 |
60 |
|
Weight(KG): |
22 |
38 |
|
Machine size(MM) |
630x410x610 |
630x410x610 | |
