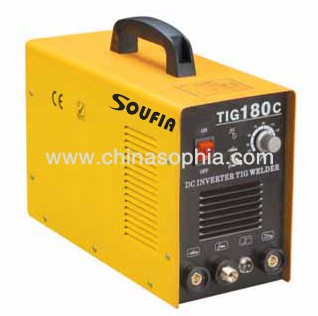

| Model:TIG-180C |
|
 Parameters |
| DC inverter welding machine: TIG-180C |
| Features: |
| 1. Advanced inverter technology, high working frequency, compact size and weight, easy to carry |
| 2. Stable and reliable welding current. |
| 3. Low No-load loss, low energy consumption |
| 4. Applicable for welding of ferrous-metals, medium carbon steel and alloy steel etc. |
|
Item |
TIG160C |
TIG180C |
TIG200C |
|
Power voltage(V) |
230 |
230 |
230 |
|
Rated input capacity(KVA) |
3.2 |
3.9 |
4.5 |
|
Input voltage frequency(HZ) |
50/60 |
50/60 |
50/60 |
|
No-load voltage(V) |
56 |
56 |
56 |
|
Output current range(A) |
10-160 |
10-180 |
10-120 |
|
Rated output voltage(V) |
16.4 |
17.2 |
18 |
|
Duty cycle(%) |
60 |
60 |
60 |
|
Efficiency(%) |
85 |
85 |
85 |
|
Insulation class |
F |
F |
F |
|
Weight(KG) |
11 |
11 |
11 |
|
Measurement(MM) |
460x270x345 |
460x270x345 |
460x270x345 |
|
Protection class |
IP21 |
IP21 |
IP21 |
|
Welding thickness(MM) |
0.3-5 |
0.3-7 |
0.3-9 |
|
Usable electrode(MM) |
1.6~4.0 |
1.6~4.0 |
1.6~4.0 | |
