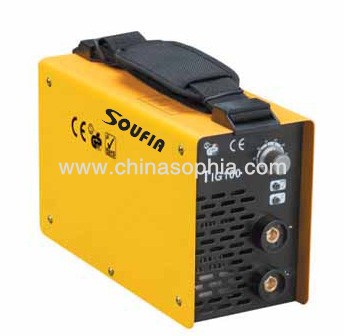

| Model:TIG-100 |
|
 Parameters |
| DC inverter welding machine: TIG-100 |
| Features: |
| 1. Minimizing, lightness, high quality and energy-saving. |
| 2. Good arc-starting and arc force, it can resist disturbing stable arc and little spatter. |
| 3. High welding quality, deep penetration and strong strength. |
| 4. Auto protection of over-voltage and over-current. |
| 5. Be able to work continuously, it can balance automatically when voltage is waving. |
| 6. Suit for welding all kinds of basic welding rod. |
| 7. Be able to weld cellulose rod. |
|
Item |
TIG100 |
TIG130 |
TIG150 |
|
Power voltage(V) |
115/230 |
230 |
230 |
|
Frequency(HZ) |
50/60 |
50/60 |
50/60 |
|
Rated input current(A) |
12 |
16 |
20 |
|
No-load voltage(V) |
80 |
80 |
80 |
|
Output current adjustable Range(A) |
5-85 |
5-120 |
5-140 |
|
Rated duty cycle(%) |
85@25 |
120@25 |
140@10 |
|
Efficiency(%) |
75 |
83 |
83 |
|
Insulation class |
H |
H |
H |
|
Protection class |
IP21 |
IP21 |
IP21 |
|
Measurement(MM) |
365x230x330 |
365x230x330 |
365x230x330 |
|
Power factor |
0.9 |
0.9 |
0.9 |
|
Weight(KG) |
7 |
7 |
7 | |
