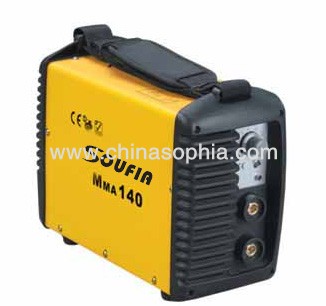

| Model:MMA-140 |
|
 Parameters |
| DC inverter welding machine: MMA 85M |
| Features: |
| 1. Minimizing, lightness, high quality and energy-saving. |
| 2. Good arc-starting and arc force, it can resist disturbing stable arc and little spatter. |
| 3. High welding quality, deep penetration and strong strength. |
| 4. Auto protection of over-voltage and over-current. |
| 5. Be able to work continuously, it can balance automatically when voltage is waving. |
| 6. Suit for welding all kinds of basic welding rod. |
| 7. Be able to weld cellulose rod. |
|
Item |
MMA85 |
MMA110 |
MMA140 |
|
Power voltage(V) |
230 |
230 |
230 |
|
Rated input capacity(KVA) |
2.3 |
3.4 |
4.6 |
|
Input voltage frequency(HZ) |
50/60 |
50/60 |
50/60 |
|
No-load voltage(V) |
76 |
76 |
76 |
|
Output current range(A) |
30-85 |
30-110 |
30-140 |
|
Rated output voltage(V) |
23.4 |
24.4 |
25.6 |
|
Duty cycle(%) |
60 |
25 |
20 |
|
Efficiency(%) |
85 |
85 |
85 |
|
Insulation class |
F |
F |
F |
|
Weight(KG) |
7 |
7 |
7 |
|
Measurement(MM) |
375x250x305 |
375x250x305 |
375x250x305 |
|
Protection class |
IP21 |
IP21 |
IP21 |
|
Usable electrode(MM) |
1.6~2.5 |
1.6~3.2 |
1.6~4.0 | |
