| Model:MIG-175 |
|
 Parameters |

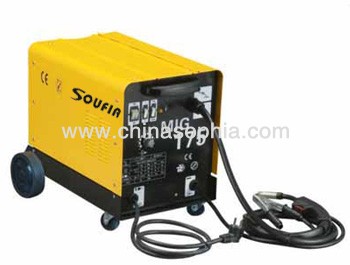

| Welding machine: MIG-175 |
| Features: |
| 1.Single-phase, portable, fan-cooled wire welding machine for MIG/MAG (gas) welding |
| 2.With thermal protection, complete with welding accessories for welding different types of materials. such as steel, stainless. |
| 3.The kit for welding different types of materials such as steel, stainless steel. |
| 4.Steel and aluminum is available on request. |
|
Item |
MIG105 |
MIG130 |
MIG150 |
MIG175 |
MIG195 |
|
Power voltage(V) |
230 |
230 |
230 |
230 |
230 |
|
Frequency(HZ) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
|
Max absorbed power(KVA) |
2.5 |
3.6 |
3.7 |
5.2 |
6 |
|
Absorbed Power 60%(KVA) |
1.1 |
1.3 |
1.4 |
2.3 |
2.5 |
|
Mains fuse(A) |
10 |
13 |
16 |
16 |
16 |
|
Power factor |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
|
Max no-load voltage output(V) |
32 |
33 |
34.2 |
35.8 |
37 |
|
Current range output(A) |
50-100 |
50-120 |
60-140 |
60-160 |
60-180 |
|
Max current output |
80@10% |
105@15% |
115@15% |
140@15% |
140@20% |
|
Adjustment positions |
4 |
4 |
4 |
4 |
4 |
|
Core welding wire diameter |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Steel welding wire diameter |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Aluminum welding wire diam |
0.8 |
0.8 |
1.0 |
1.0 |
1.2 |
|
Insulation class |
H |
H |
H |
H |
H |
|
Measurement(MM) |
535x265x410 |
535x265x410 |
595x340x410 |
595x340x410 |
595x340x410 |
|
Weight(KGS) |
30 |
32 |
35 |
37 |
38 | |
