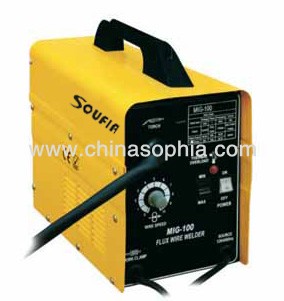

| Model:MIG-100 |
|
 Parameters |
| Welding machine: MIG-100 |
| Features: |
| 1.Single phase, flux wire welding machine for flux(no gas)welding. |
| 2.With thermal protection, complete with flux welding accessories. |
|
Item |
MIG-100 |
MIG-130 |
|
Power voltage(V) |
230 |
230 |
|
Frequency(HZ) |
50/60 |
50/60 |
|
Max absorbed power(KVA) |
2.5 |
3.6 |
|
Absorbed Power 60%(KVA) |
1 |
1.5 |
|
Mains fuse(A) |
10 |
13 |
|
Power factor |
0.9 |
0.9 |
|
Max no-load voltage in AC(V) |
33 |
37 |
|
Current range output(A) |
50-80 |
50-120 |
|
Max current output |
80@10% |
105@15% |
|
Adjustment positions |
4 |
4 |
|
Aluminum welding wire diam |
0.8 |
0.8-0.9 |
|
Insulation class |
H |
H |
|
Protection class |
IP21 |
IP21 |
|
Measurement(MM) |
450x240x400 |
450x240x400 |
|
Weight(KG) |
17 |
18.5 |
|
Usable electrode(MM) |
0.6~1.0 |
0.6~1.0 | |
