| Model:BX6-250 |
|
 Parameters |

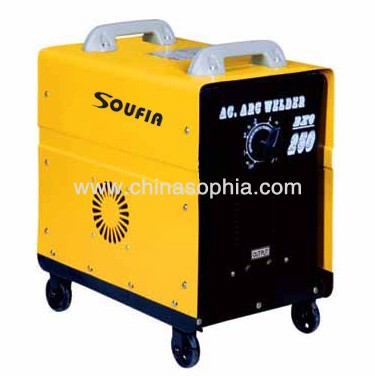

| AC arc welding machine: BX6-250 |
| Features: |
| 1. Use a new style transformer and a unique box structure, light, compact and easy to be moved. |
| 2. Fitted with a handle and foot wheels for a better movement. |
| 3. Weldable materials: low-carbon steel, high-strength steel, medium-carbon steel, low-alloy steel. |
|
Item |
BX6-140 |
BX6-160 |
BX6-200 |
BX6-250 |
BX6-315 |
BX6-400 |
BX6-500 |
|
Rated output current(A) |
140 |
160 |
200 |
250 |
315 |
400 |
500 |
|
Power voltage(V) |
230/380 |
230/380 |
230/380 |
230/380 |
230/380 |
230/380 |
230/380 |
|
Rated duty cycle(%) |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
Rated input capacity(KVA) |
6.5 |
8 |
13.2 |
16.5 |
19.8 |
28.6 |
38 |
|
Current adjustable range(A) |
60-140 |
60-160 |
60-200 |
80-250 |
90-300 |
90-400 |
100-500 |
|
Insulation grade |
F |
F |
F |
F |
F |
F |
F |
|
No-load voltage(V) |
54 |
54 |
55 |
55 |
60 |
60 |
60 |
|
Weight(KG) |
28 |
29 |
30 |
38 |
40 |
45 |
51 |
|
Measurement(MM) |
540x360x570 |
540x360x570 |
540x360x570 |
570x380x590 |
570x380x590 |
570x380x590 |
570x380x590 |
|
Usable electrode(MM) |
1.6~3.2 |
1.6~4 |
2.5~4 |
2.5~5 |
2.5~6 |
2.5~8 |
2.5~8 | |
