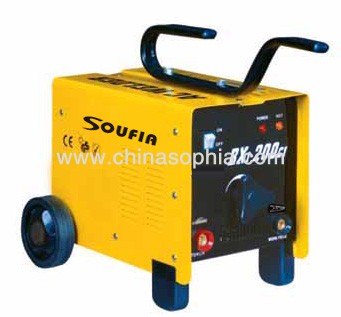

| Model:BX1-200C1 |
|
 Parameters |
| AC arc welding machine: BX1-200C1 |
| Features: |
| 1. Stepless adjusted power by rotating the handle. |
| 2. Suitable for the welding of small workpieces. |
| 3. Portable and forced air-cooling structure. |
|
Item |
BX1-130C1 |
BX1-160C1 |
BX1-180C1 |
BX1-200C1 |
BX1-250C1 |
|
Rated output current(A) |
130 |
160 |
180 |
200 |
250 |
|
Power voltage(V) |
110,230/400 |
110,230/400 |
110,230/400 |
110,230/400 |
110,230/400 |
|
Rated duty cycle(%) |
10 |
10 |
10 |
10 |
10 |
|
Rated input capacity(KVA) |
6 |
8 |
9.5 |
10.7 |
14.2 |
|
Current range(A) |
50~130 |
60~160 |
70~180 |
80~200 |
90~250 |
|
Electrode diameter(MM) |
2~2.5 |
2~3.2 |
2~3.2 |
2.5~3.2 |
2.5~4 |
|
Weight(KG) |
17 |
18 |
19 |
21 |
22 |
|
Measurement(MM) |
470x270x320 |
470x270x320 |
470x270x320 |
470x270x320 |
470x270x320 |
|
Cod.(NO) |
891031 |
891032 |
891033 |
891034 |
891035 | |
