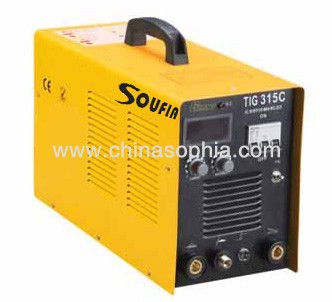

| DC inverter welding machine: TIG-315C |
| Features: |
| 1. Adopting MOSFET inverter technology, advanced electronic circuit design, handy power supply, energy saving. |
| 2. Direct and reliable welding current, digital display. |
| 3. Automatic compensation for electricity voltage pulsation. |
| 4. Advanced inverter technology. Multi purposes. Suitable for TIG and MMA of various metals. |
| 5. Easy arc ignition, stable welding current, fast dynamic response, no welding noise, little welding spatter, no magnetic bias, smooth weld appearance. |
| 6. Stable and reliable operation, highly effective and energy saving, compact structure, reduced weight, easy to carry. |
|
Item |
TIG-250C |
TIG-315C |
|
Power voltage(V) (3PH) |
380 |
380 |
|
Rated input capacity(KVA) |
6.3 |
8.8 |
|
Input voltage frequency(HZ) |
50/60 |
50/60 |
|
No-load voltage(V) |
35 |
35 |
|
Output current range(A) |
20-250 |
20-290 |
|
Rated output voltage(V) |
20 |
22 |
|
Duty cycle(%) |
60 |
60 |
|
Efficiency(%) |
85 |
85 |
|
Insulation class |
F |
F |
|
Weight(KG) |
15 |
15 |
|
Measurement(MM) |
535x285x385 |
535x285x385 |
|
Protection class |
IP21 |
IP21 | |
