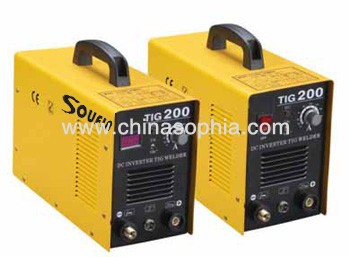

| DC inverter welding machine: TIG-200 |
| Features: |
| 1. Suitable for welding plate specially |
| 2. Able to welding plate which thickness is from 0.1mm to 0.5mm |
| 3. Lightness and carry easily |
| 4. HF Arc-starting and strong welding permeability |
| 5. Smooth and beautiful welding surface. |
|
Item |
TIG160 |
TIG200 |
TIG300 |
|
Power voltage(v) |
1~230 |
1~230 |
3~380 |
|
Rated input capacity(KVA) |
3.2 |
4.5 |
8.3 |
|
No-load voltage(V) |
43 |
43 |
42 |
|
Output current range(A) |
10-160 |
10-200 |
10-300 |
|
Rated output voltage(V) |
16.4 |
18 |
22 |
|
Duty cycle(%) |
60 |
60 |
60 |
|
Efficiency(%) |
85 |
85 |
85 |
|
Weight(KG) |
11 |
11 |
15 |
|
Measurement(MM) |
460x270x345 |
460x270x345 |
535x285x385 |
|
Protection class |
IP21 |
IP21 |
IP21 |
|
Welding thickness(MM) |
0.3-5 |
0.3-8 |
0.5-12 |
|
Usable electrode(MM) |
1.6~4.0 |
1.6~4.0 |
1.6~5.0 | |
