参数

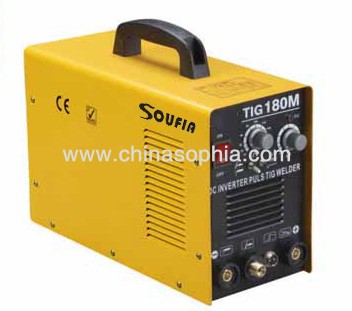

DC inverter welding machine: TIG-180M
Features:
1. Minimizing, lightness, high quality and energy-saving.
2. Good arc-starting and arc force, it can resist disturbing stable arc and little spatter.
3. High welding quality, deep penetration and strong strength.
4. Auto protection of over-voltage and over-current.
5. Be able to work continuously, it can balance automatically when voltage is waving.
6. Suit for welding all kinds of basic welding rod.
7. Be able to weld cellulose rod.

Item

TIG160M

TIG180M

TIG200M

Power voltage(V)

230

230

230

Frequency(HZ)

50/60

50/60

50/60

Rated input current(A)

14.4

17.6

19.8

No-load voltage(V)

56

56

56

Output current adjustable Range(A)

20-160

20-180

20-200

Rated duty cycle(%)

60

60

60

Efficiency(%)

85

85

85

Insulation class

F

F

F

Protection class

IP21

IP21

IP21

Measurement(MM)

460x270x345

460x270x345

460x270x345

Power factor

0.9

0.9

0.9

Weight(KG)

9

9

9

Usable electrode(MM)

1.6~4.0

1.6~4.0

1.6~4.0
