| DC Inverter Plasma Cutter: CUT-100 (Inverter) |
| Features: |
| 1. Cutting capacity increased 1.8 times higher in cutting speed compare with flame cutter |
| 2. Thick metal plate can be cut easily and quickly. |
| 3. Suitable for cutting stainless steel, copper, iron and aluminium metal etc. |
| 4. Simple operation, smooth cutting surface. |
| 5. Hf untouched Arc-starting cutting (70,100,120) |
| 6. Hf touched Arc-staring cutting (30,40, 60) |
|
Item |
CUT-60 |
CUT-100 |
|
Power voltage(V) |
3~380 |
3~380 |
|
Rated input capacity(KVA) |
7.9 |
15 |
|
No-load voltage(V) |
236 |
270 |
|
Current range(A) |
20-60 |
20-100 |
|
Rated output voltage(V) |
104 |
96 |
|
Rated duty cycle(%) |
60 |
60 |
|
Efficiency(%) |
85 |
85 |
|
Insulation class |
F |
F |
|
Protection class |
IP21 |
IP21 |
|
Weight(KG) |
19 |
11 |
|
Measurement size(MM) |
480x205x355 |
565x285x520 |
|
Max. cutting thickness(MM) |
23 |
30 | |
| 最新评论 |
| 评论 |
|
|
|
上一个:
ZX6-315
下一个 :

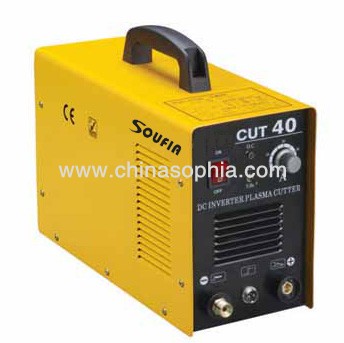

CUT-40
